Thermal Insulation Exterior Wall Cladding Panels

At San Dong Building Materials, we manufacture and supply exterior cladding and facade products for customers in international markets. Our product range includes exterior wall cladding, insulated sandwich wall panels, insulation boards and other building materials. We currently serve customers in more than 30 countries and regions, and our production and quality-control system covers raw materials as well as finished-panel performance.

What Are Thermal Insulation Exterior Wall Cladding Panels?
The thermal insulation exterior wall cladding panels are more than a decorative layer attached to a building. It forms part of the building envelope and helps separate the indoor environment from rain, wind, sunlight and temperature changes outside.
Our panel system combines a facing layer, reinforcement structure, insulation layer and related installation components. Depending on the product configuration, the system can provide thermal insulation, weather protection and a finished exterior appearance at the same time. This makes it particularly useful when a project needs to improve wall performance without creating an unnecessarily complicated construction sequence.
For projects where energy efficiency is important, the insulation layer is particularly valuable. A low-conductivity insulation material reduces the rate at which heat passes through the wall assembly. Our published specification gives a thermal conductivity of 0.018 W/m·K and a thermal resistance of 2.09 m²·K/W for the referenced thermal insulation panel. Actual building performance will depend on the complete wall structure, installation quality, joints and local climate conditions.

Why Insulation Should Be Considered Together With Cladding
When we discuss exterior wall materials with project customers, we do not recommend looking at appearance alone. A wall may look attractive after installation, but if the insulation layer, joints or weather protection are poorly designed, the building can still experience unnecessary heat transfer and maintenance problems.
The advantage of an integrated thermal insulation exterior wall cladding panels system is that the exterior finish and insulation are considered together. The panel can create a more consistent wall assembly while reducing the number of separate materials that the contractor needs to coordinate.
For renovation projects, this can be especially useful because improving the existing wall does not always require completely rebuilding the exterior structure. The final solution still needs to be checked against the existing wall, local building codes and the project's structural requirements.

Where Can These Panels Be Used?

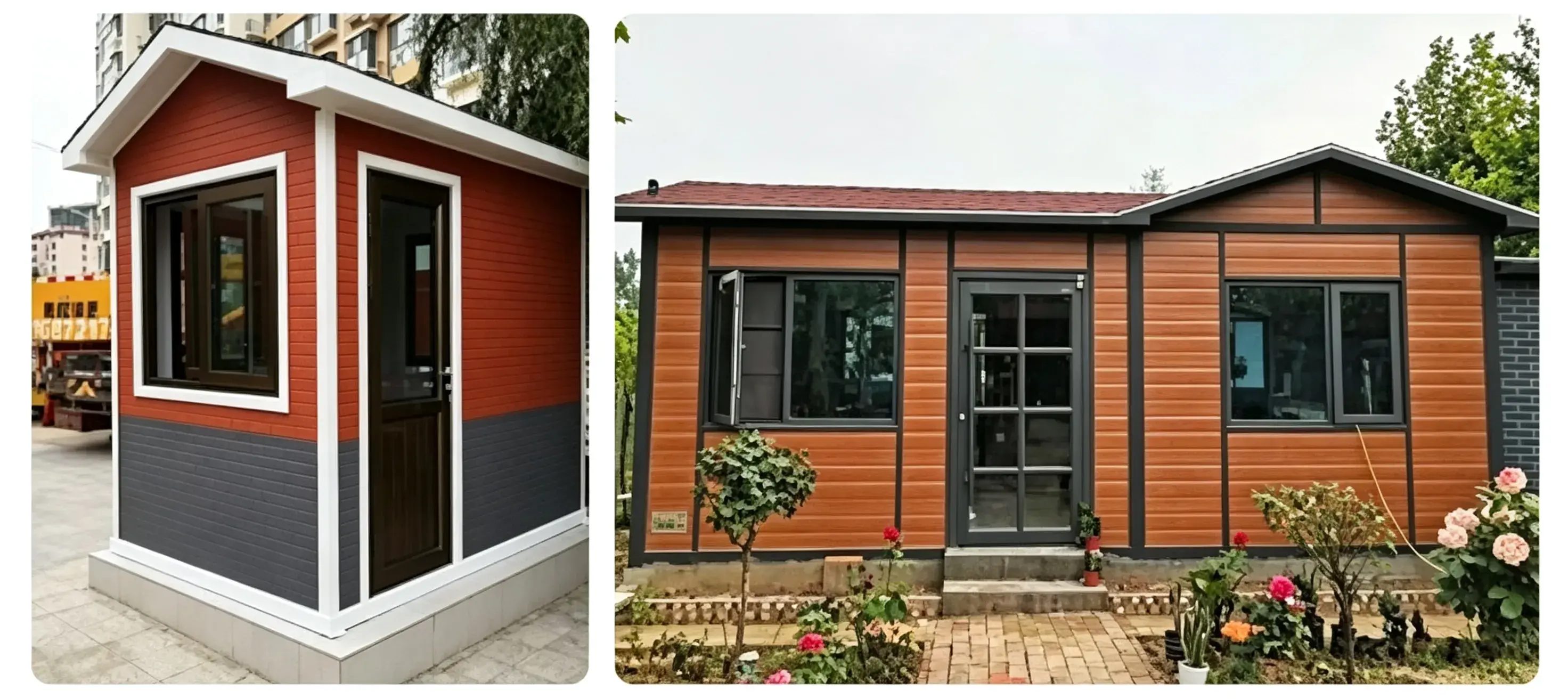

These thermal insulation exterior wall cladding panels can be considered for residential buildings, commercial properties, industrial buildings, warehouses, offices, hotels and renovation projects.

For new construction, the panels can be incorporated into the building envelope during the facade design stage. For renovation work, we normally recommend checking the existing wall condition first, including substrate strength, moisture, flatness and fixing conditions.

The product can also be useful for projects in climates with significant seasonal temperature differences because the insulation layer helps reduce heat transfer through the wall. However, the required insulation thickness should always be calculated according to the local climate zone and building-energy requirements rather than selected only from a catalog.

Our Purchasing Process
The purchasing process starts with your project information rather than a standard catalog order. Send us the required panel dimensions, quantity, insulation requirements, surface finish and project location.
We then review the requirements and recommend a suitable panel configuration. After the specifications are confirmed, we can prepare a sample or production reference where required.
Once the sample and technical details are approved, we proceed with production, quality inspection, export packaging and shipment. This process gives both sides a clear reference before a large quantity is manufactured.

Why Choose San Dong Building Materials?
We are a China building materials manufacturer and supplier focused on exterior cladding and facade solutions rather than a single decorative panel product. Our product range covers exterior wall cladding, insulated wall panels, insulation boards and related construction materials.
We serve customers in more than 30 countries and regions, giving us experience with different project requirements and international communication. Our website also provides dedicated support for wholesalers, contractors, new construction and renovation projects.
From our perspective, the benefit of working directly with a manufacturer is that technical specifications, surface design, panel dimensions, packaging and delivery can be discussed together rather than being handled by several unrelated suppliers.

FAQ
Q1: What are thermal insulation exterior wall cladding panels?
A1: They are exterior wall panel systems that combine a decorative/protective facing with an insulation layer and related structural or installation components. They are designed to improve exterior appearance while helping reduce heat transfer through the building envelope.

Q2: Are the panels waterproof?
A2: The product system is designed with waterproof protection and sealing components, and the published specification provides a waterproof-rate value of 0.0008.

Q3: What thicknesses are available?
A3: The published specification lists exterior thicknesses of 16 mm and 20 mm, with an interior reference thickness of 10 mm. Customized dimensions can also be discussed according to project requirements.

Q4: Can the panel dimensions be customized?
A4: Yes. Panel length is listed as customizable, and other dimensions and material configurations can be discussed according to the project.

Q5: Are thermal insulation exterior wall cladding panels suitable for building renovation projects?
A5: Yes. Exterior wall cladding panels can be considered for both new construction and renovation.
